B-Quiet VComp
In stock
$119.99

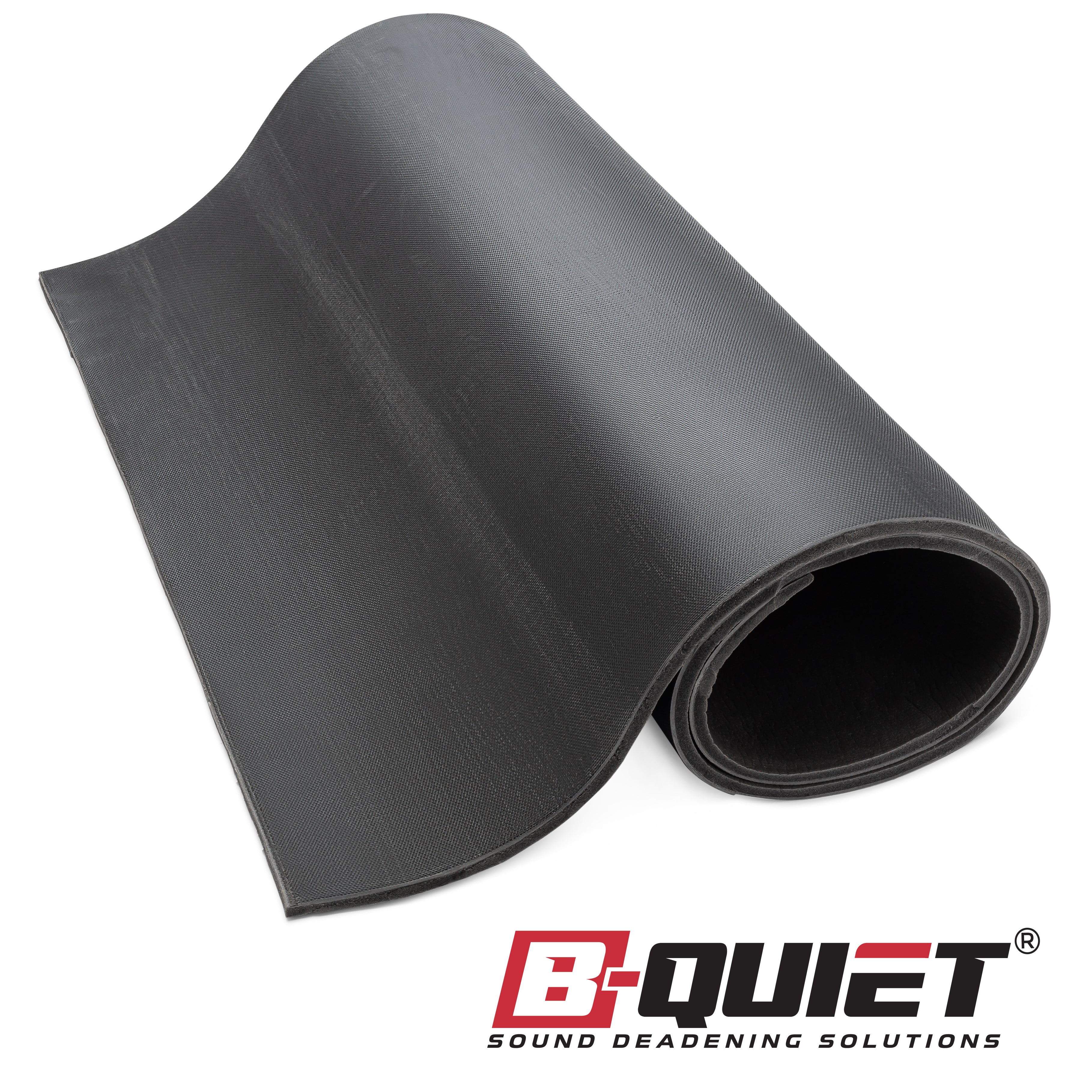

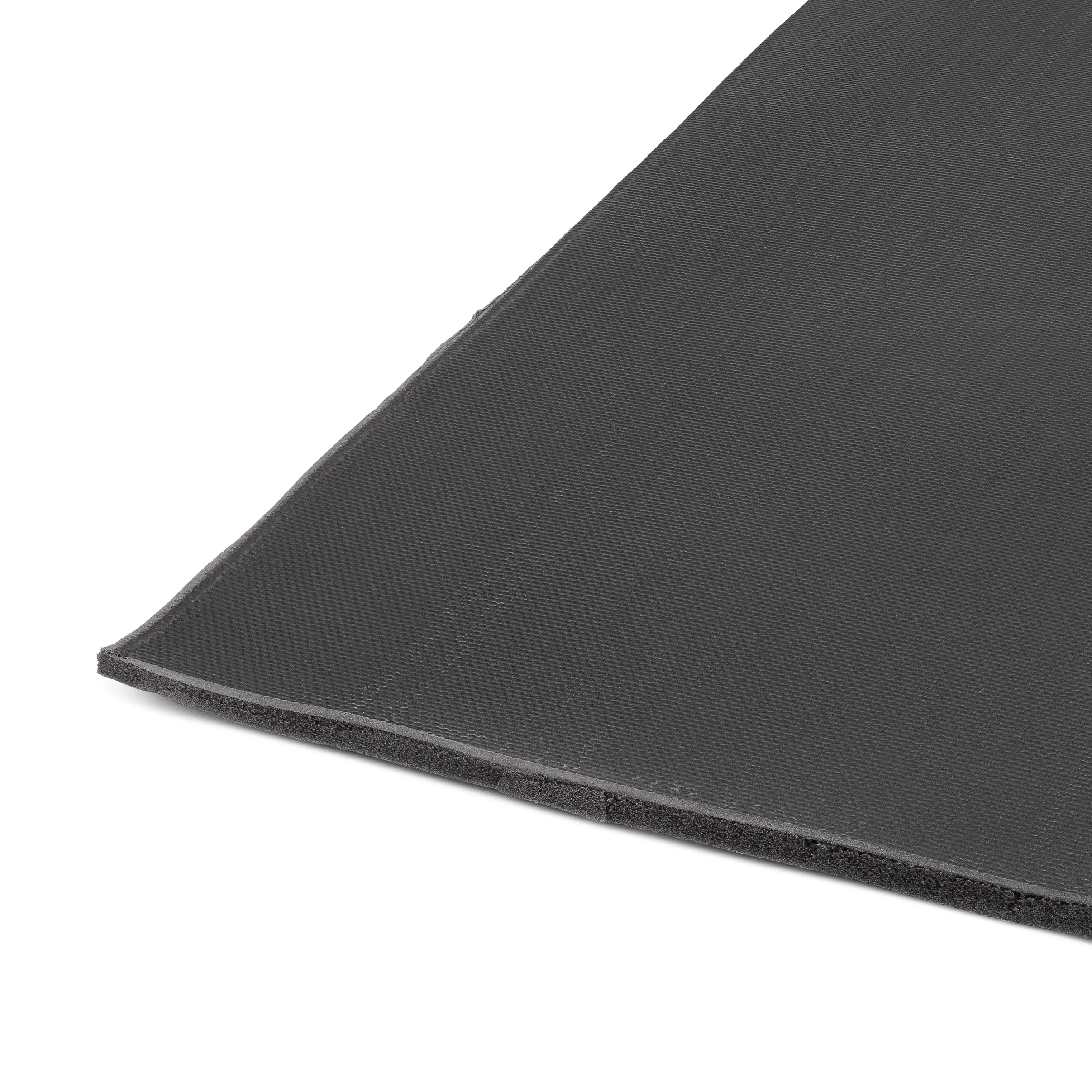

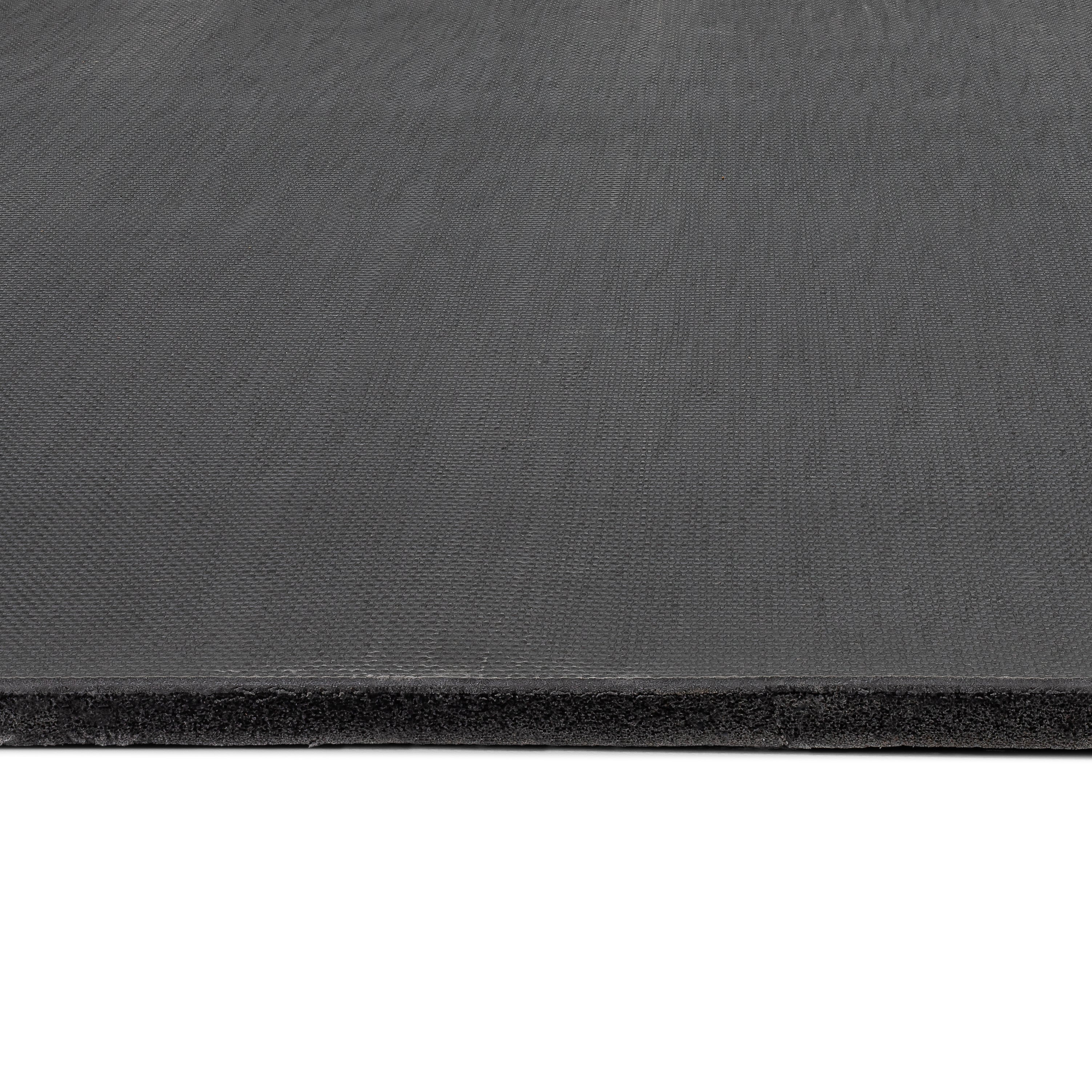

Vcomp is a noise barrier composite consisting of a dense 1/8″ vinyl based polymer barrier with a 1/4″ thick foam decoupler. It has a total thickness of 3/8″, weighs approximately 1 lb/sq. ft.
customers are viewing this product
VComp is a noise barrier composite consisting of a dense 1/8″ vinyl based polymer barrier with a 1/4″ thick foam decoupler. It has a total thickness of 3/8″, weighs approximately 1 lb/sq. ft.

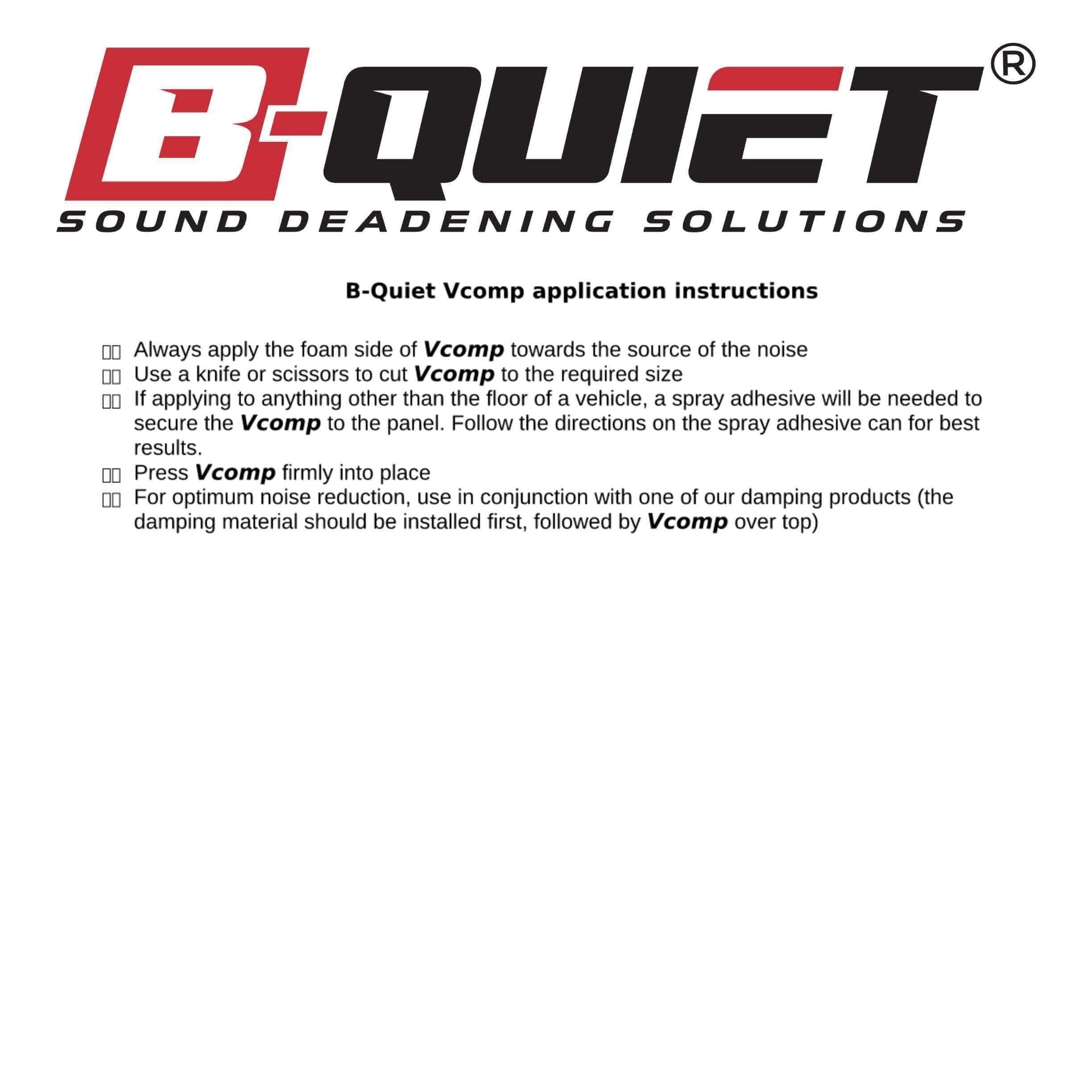

Vcomp is meant to be installed on floors, doors and firewalls to reduce road and engine noise. Using a damping material in conjunction with Vcomp will offer the optimum performance.
Each sheet measures 54″ x 36″ for a total of 13.5 sq. ft. per sheet.
Transmission Loss, in dB:
15 @ 125Hz
17 @ 250Hz
21 @ 500Hz
28 @ 1KHz
34 @ 2KHz
37 @ 4KHz
STC = 27
Temperature Range:
-40C to +121C (-40F to +250F)
| Acoustic Loss Factor | B-Quiet® Extreme | B-Quiet® Ultimate |
|---|---|---|
|
ASTM E756 @ 200 Hz: 0c (32F) 10c (50F) 20c (68F) 30c (68F) 30c (104F) |
0.16 0.19 0.29 0.20 0.14 |
0.23 0.26 0.39 0.32 0.24 |
| Temperature Range | -55C to +110C -67F to +230F |
-60C to +145C -76F to +239F |
| Thickness | 1.5mm (45mil) | 1.6mm (60mil) |
| Weight (per sq. ft.) | 0.33 lb | 0.35 lb |
| Price (per sq. ft.) | $1.50 (Price based on 100+ sq. ft.) |
$2.37 (Price based on 150+ sq. ft.) |
| Transmission Loss | B-Quiet® Vcomp | B-Quiet® Lcomp |
|---|---|---|
| in dB: 120Hz 250Hz 500Hz 1KHz 2KHz 4KHz STC |
15 17 21 28 34 37 27 |
17 21 24 32 34 36 30 |
| Temperature Range | -40C to +121C -40F to +250F |
-40C to +121C -40F to +250F |
| Thickness | 3/8" | 1/2" |
| Weight (per sq. ft.) | 1 lb | 1 lb |
| Price (per sq. ft.) | $5.18 (based on 40.5+ sq. ft.) |
$13.06 (based on 24+ sq. ft.) |
